systems & parts
For all the FJ Land Cruisers we restore we use mainly original Toyota parts, or find the best quality parts for each component.

Suspension
All suspension components are replaced using Old Man Emu which gives a 1.5” lift providing a more comfortable ride without losing its character while providing a clean level stance.

Brakes
Power assisted front disk and rear drum brakes using all original Land Cruiser components, Booster, central and auxiliary pumps bring it to a quick and safe stop. On pre-1975 models, we install 79-83 pedal hangers cluster and an original reinforcing bracket on firewall.

Safety
Safety is our biggest concern. All of our soft top and most hard-top vehicles have roll bars installed. All vehicles are equipped with DOT approved seatbelts.

Exhaust System
Aluminized exhaust pipes and mufflers are hung properly from the chassis and undercarriage.

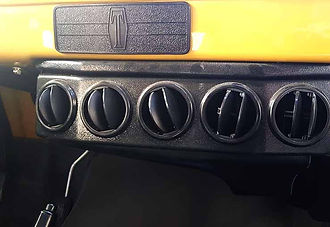

Air Conditioning
If equipped,Generation 4 Vintage Air. Our set up uses original Land Cruiser brackets and pulleys no ad on brackets. We employ the original placement of the compressor, under the cold air intake, the alternator, and power steering pump both sits on top as per US Spec vehicles.

Body Panels
All panels are inspected, repaired and/or replaced where needed using the correct technics minimizing the use of body fillers. Extensive use of electric spot welder as originally used by Arakawa Auto Body-

Fit & Finish
Fit and finish is as good or better than factory, with correct gaps.

Special Finishes
RM system (BASF) employing Epoxy base coats, high build primer, color and high solids clear. On the inside we use RM single stage system to insure evenness of shine. The undercarriage we use a RM system (BASF) epoxy.
All parts and fasteners originally galvanized are redone with either a hot dipped or cold process and later yellow chromate.

Weather Stripping and panel seals (panels, windows and roof)
All new weather stripping and panel seals through out.
Sound Proofing
If originally equipped, cars are soundproof with original sound deadening materials.

Upholstery
We use the closest to original vinyls available with UV and Flame-retardant protection.

Seats
All vinyl has exact grain to originals and 94% color matching, springs and clips are replaced as needed, padding is either replaced or reinforced with medium and high-density urethane foam.

Door Panels
Original new Toyota panels

Carpets
We use thick vinyl’s with UV and Flame-retardant protection

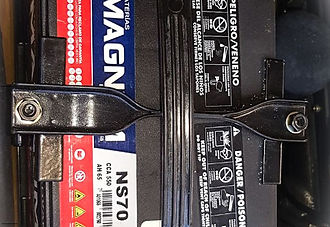

Battery and Charging
New 36-month HO battery with special terminals is supplied. Charging while the engine is running is done by an OEM refurbished alternator.

Starter
Refurbish modern high torque starter on 1979-1983 or a OEM starter on 1964-1978 models

Ignition
Electronic Ignition, no worry about points

Lights
Hella headlights DOT approved for safer night driving, all original Toyota, turn signals stop, reverse and interior lights

Harness
New electrical harness using bran new original terminals and plugs. All wire is correct gauge and color coded as original and comply with SAE J-1128 specifications.

Instrument Cluster
Restored were possible or replaced with NOS and if its unavailable, we used a proven aftermarket replacement.

Switches
Restored were possible or replaced with NOS and if its unavailable, we used a proven aftermarket replacement.

Cooling System
New aftermarket.

Cooling System
Restored and serviced original or new Toyota.

Hoses
New coupled with Double wire hose clamps as original

Carburator and Fuel Pump
New aftermarket Rally on 1976-1983 or original restored AISAN on Pre 1975 models

Gas Tank and Hoses
Gas tank is striped and tested for leaks using a special solvent. Depending on seam and other condition considerations, the gas tank is then cold dipped galvanized. All tanks are then coated on the inside using a special epoxy resin resistant to fuel. On the outside the tank is painted using also epoxy paints.
Hoses and Clamps
New and as original.
